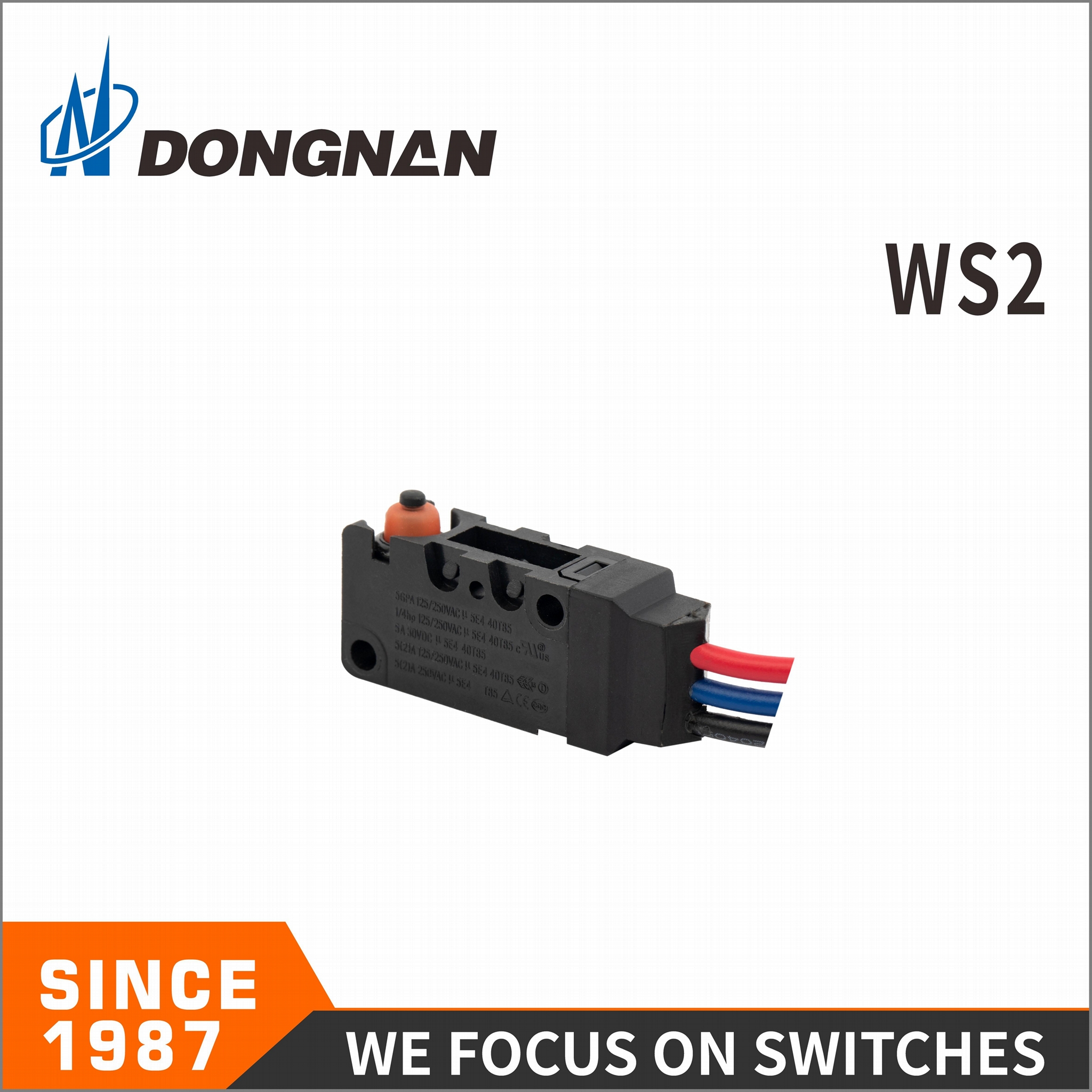

Dongnan Micro Switch IP67 Car Seat Water Heater WS2 Waterproof Micro Switch

Model No.︰	WS2
Brand Name︰	DONGNAN
Country of Origin︰	China
Unit Price︰	CNY ¥ 15 / pc
Minimum Order︰	1000 pc

Total 11 Related Items

Product Description

To be stably sealed by sealed rubber ring and epoxy resin.can be used in wet or dusty places.

Can be used in environment resistant places and application , outdoor apparatus such as automobile,vending machine,refrigerator, ice machine , bath equipment,water heater and air-conditioner etc.

Specifications︰	Operating speed：0.1mm~1m/s Operating frequency： Mechanical 60cycles/min, Electrical 25cycles/min Insulation resistance：≥100MΩ（500VDC） Vibration resistance： 10~55Hz, 1.5mm Double amplitude Life：Mechanical≥2000000 cycles Electrical≥50000 cycles Weight： Approx 6.2g （No lever） Safety approvals： UL、CUL
Advantages︰	1.Nice appearance, tight configuration. Characteristic: small contact clearance, quick action, high sensitivity and small operating travel. 2.Long life, high reliablity
Export Markets︰	Global
Payment Details︰	T/T
Min Order︰	1000
Ship Date︰	15days
Standard Met︰	UL CUL
