Product Description

To be stably sealed by sealed rubber ring and epoxy resin.can be used in wet or dusty places.

Can be used in environment resistant places and application , outdoor apparatus such as automobile,vending machine,refrigerator, ice machine , bath equipment,water heater and air-conditioner etc.

Specifications︰ Operating speed：0.1mm~1m/s
Operating frequency：
Mechanical 60cycles/min,
Electrical 25cycles/min
Insulation resistance：≥100MΩ（500VDC）
Vibration resistance： 10~55Hz, 1.5mm Double
amplitude
Life：Mechanical≥2000000 cycles
Electrical≥50000 cycles
Weight： Approx 6.2g （No lever）
Safety approvals： UL、CUL

Advantages︰ 1.Nice appearance, tight configuration. Characteristic: small contact clearance, quick action, high sensitivity and small operating travel.
2.Long life, high reliablity

Export Markets︰ Global

Payment Details︰ T/T

Min Order︰ 1000pcs

Ship Date︰ 20days

Standard Met︰ UL, CUL,ENEC, DEMKO,CE,CQC

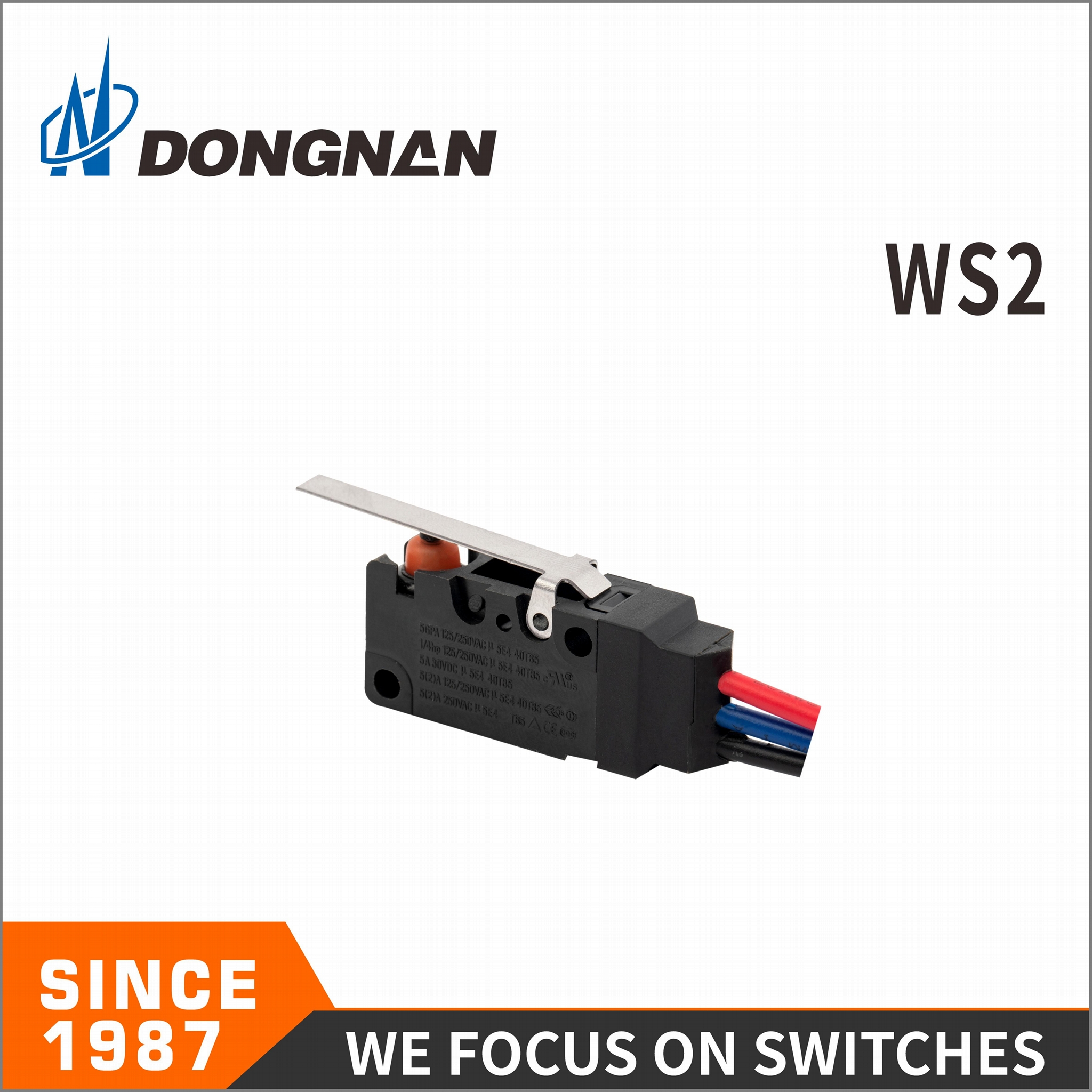

Product Image
